YEC Machining Facility

MACHINE FACILITIES

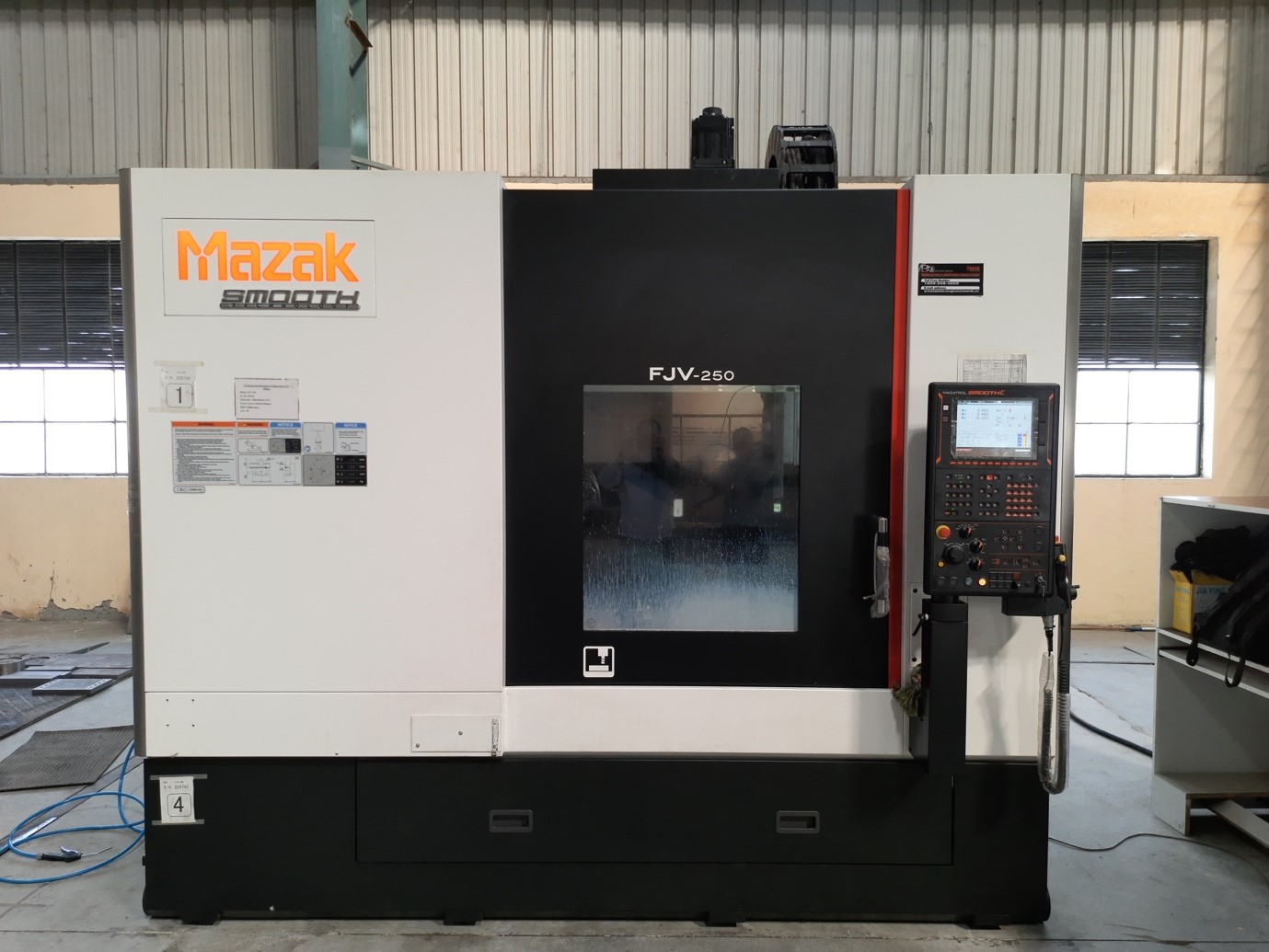

CNC 3-axis Milling (Make Mazak)

Technical Details Size
Max. Table Travel X-axis 1000 mm
Max. Table Travel Y-axis 500 mm
Max. Spindle Travel Z-axis 450 mm
Table –Width x Length 1200x550 mm
Max. Spindle RPM 25,000RPM
Controller Mazatrol

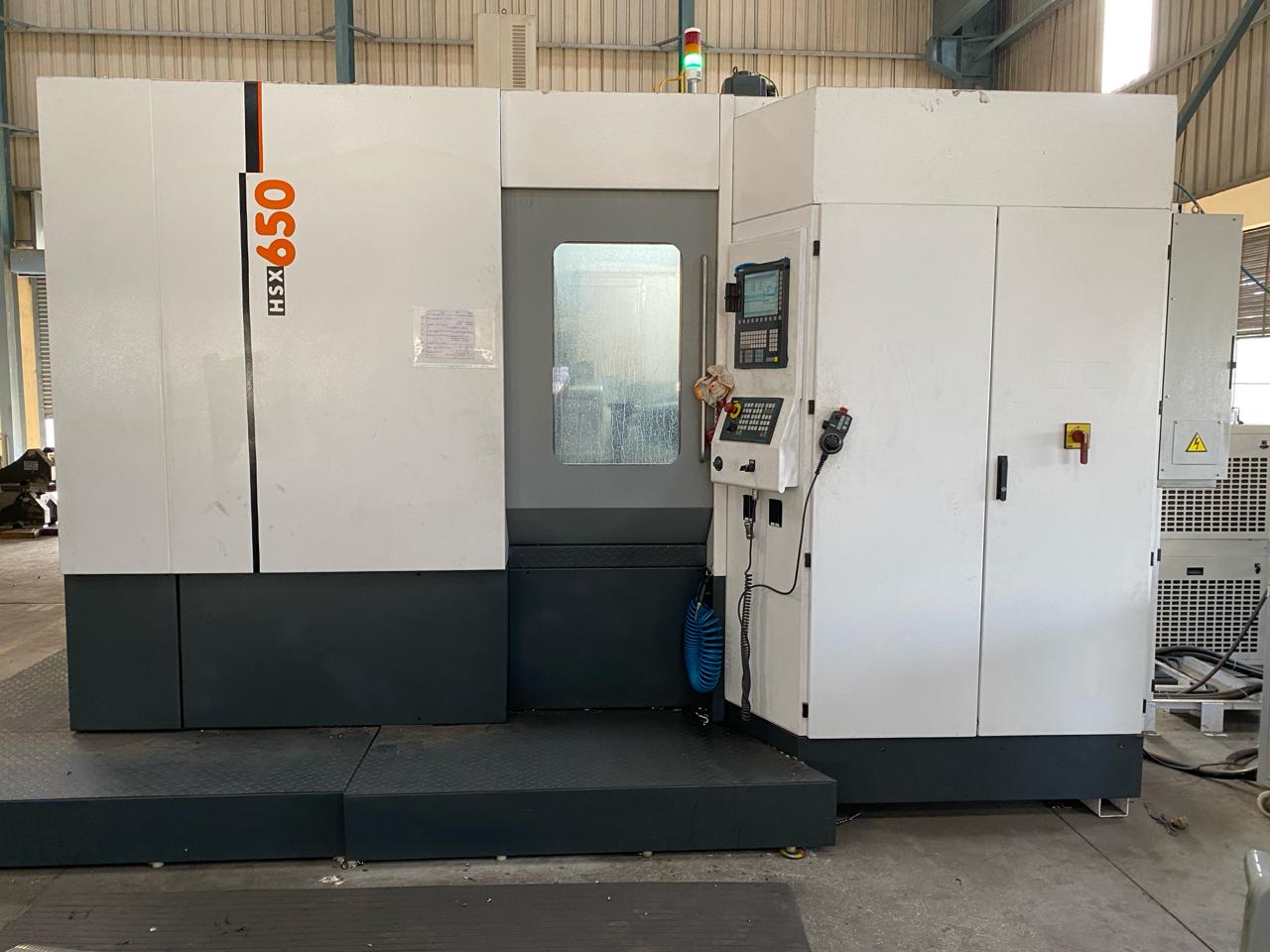

CNC 4- Axis HMC Milling (Make JYOTI)

Technical Details Size
Max Table Travel X- Axis 800 mm
Max. Table Travel Y-axis 500 mm
Max. Spindle Travel Z-axis 450 mm
TABLE Length x Width 630x630 mm
Max Spindle Speed 10000 RPM
Controller Siemens 828D

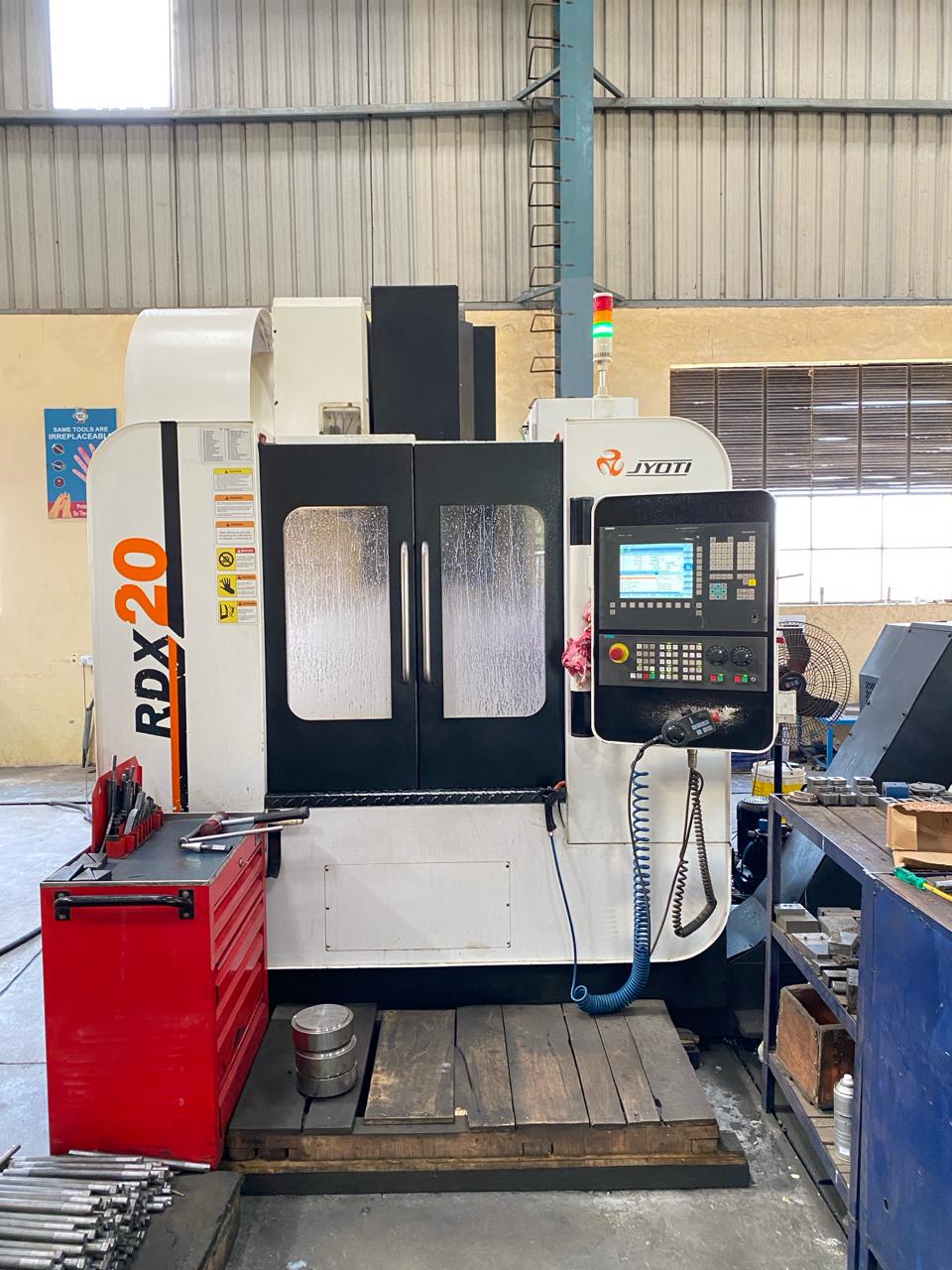

CNC 5-axis Milling (Make Jyoti)

Technical Details Size
Max. Table Travel X-axis 800 mm
Max. Table Travel Y-axis 500 mm
Max. Spindle Travel Z-axis 500 mm
Max. Rotary Table B-axis ±110° & C-axis 360°
Table –Width x Length 1000x530 mm
Max. Spindle RPM 10,000RPM
Controller Siemens 840D

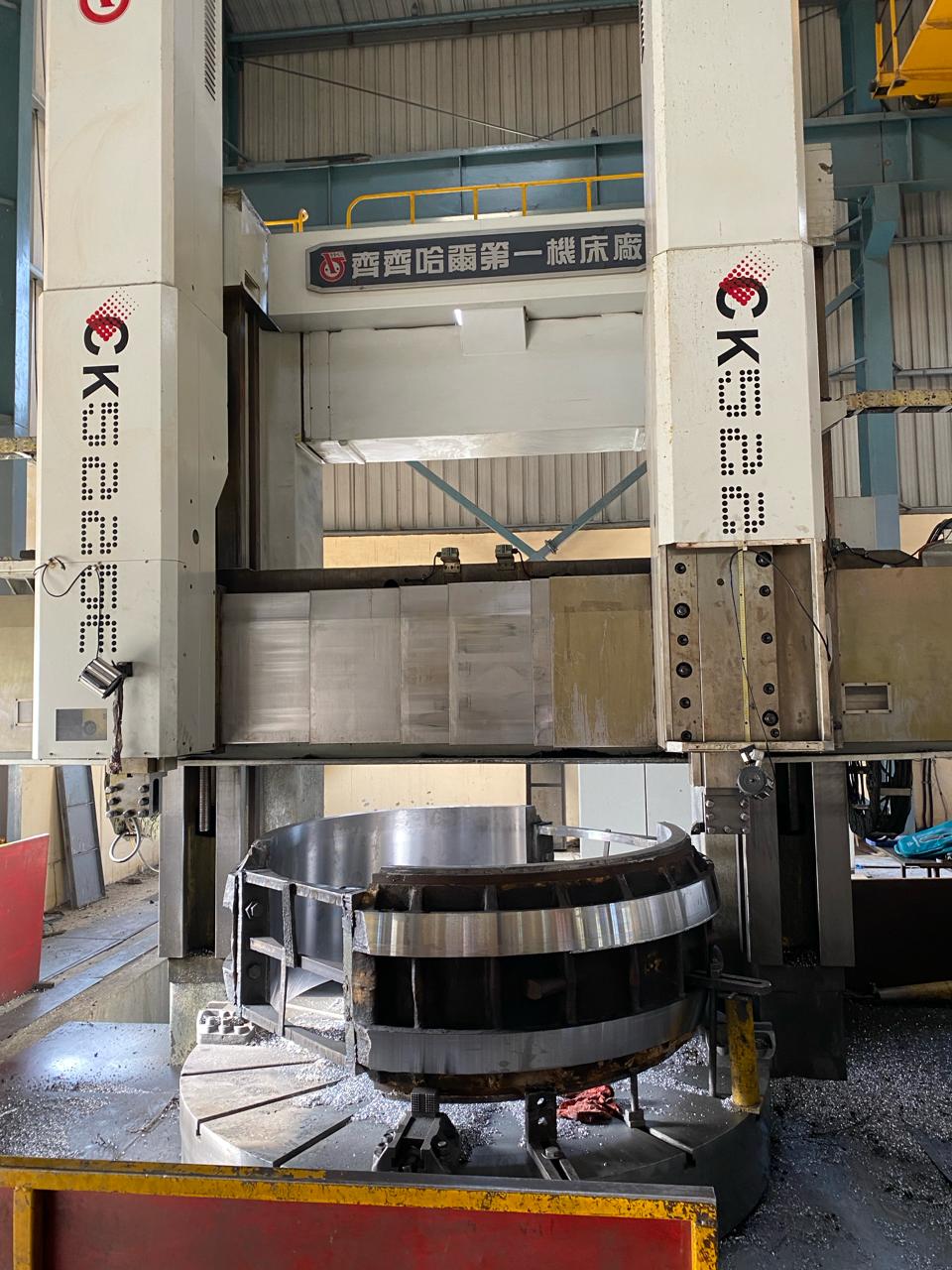

CNC VTL (Make Qiqihar Heavy CNC Equipment)

Technical Details Size
Max. Turning Dia. 2500 mm
Max. Turning Length 2000 mm
Max. Spindle RPM 63 RPM
No. of RAM 2 Nos.
Controller Siemens 828D
Max. load Capacity 30 Tons.

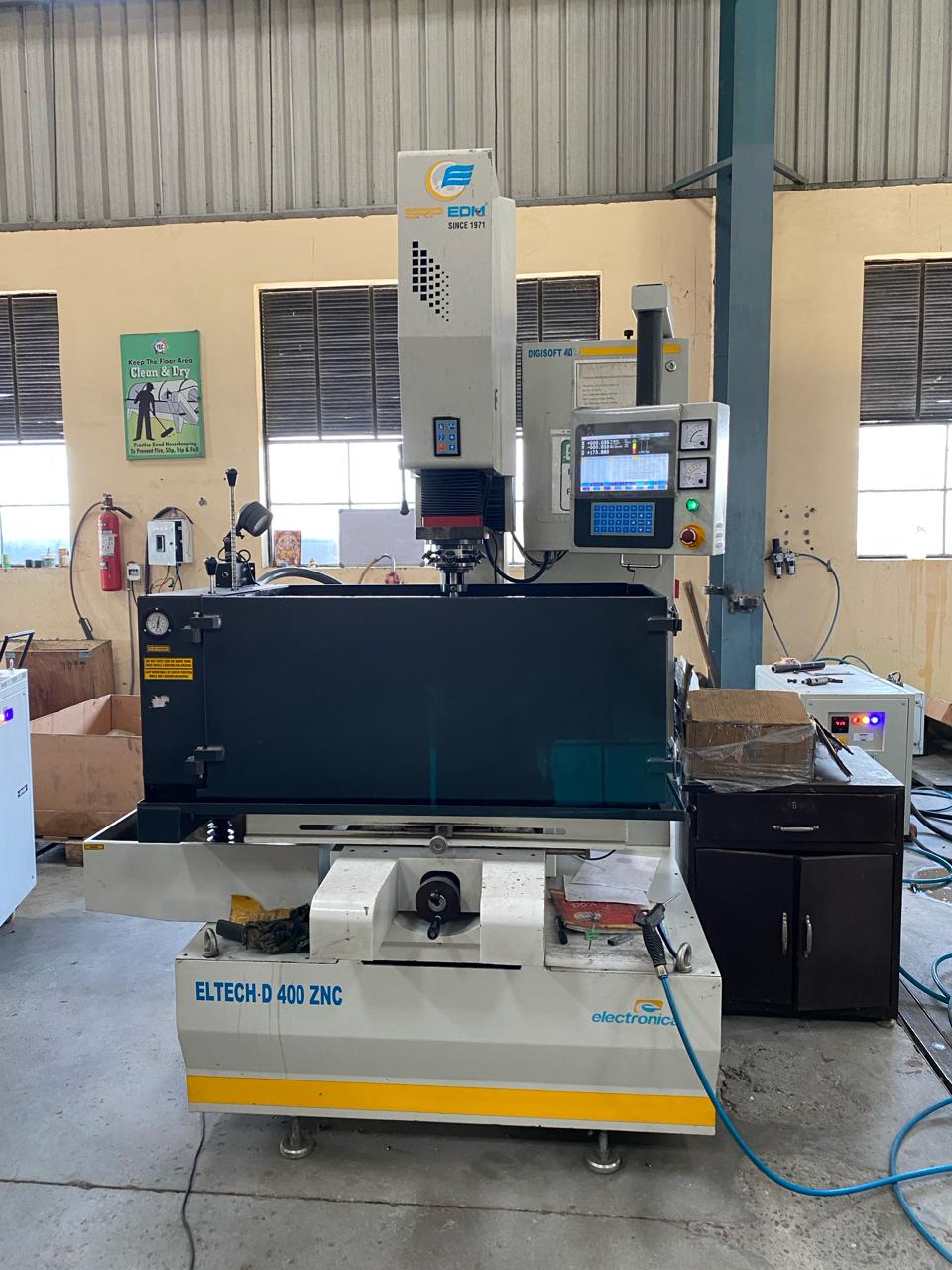

EDM (Make Electronica)

Technical Details Size
Max. Table Travel X-axis 900 mm
Max. Table Travel Y-axis 500 mm
Max. Spindle Travel Z-axis 600 mm
Table –Width x Length 600x400 mm
EDM Method Die sinking

CNC Mill-Turn (Make Lokesh)

Technical Details Size
Max. Turning Dia. 300 mm
Max. Turning Length 500 mm
Max. Spindle RPM 4000 RPM
Max. no. of tools 12 Nos. (all live tools)
Controller Siemens 828D

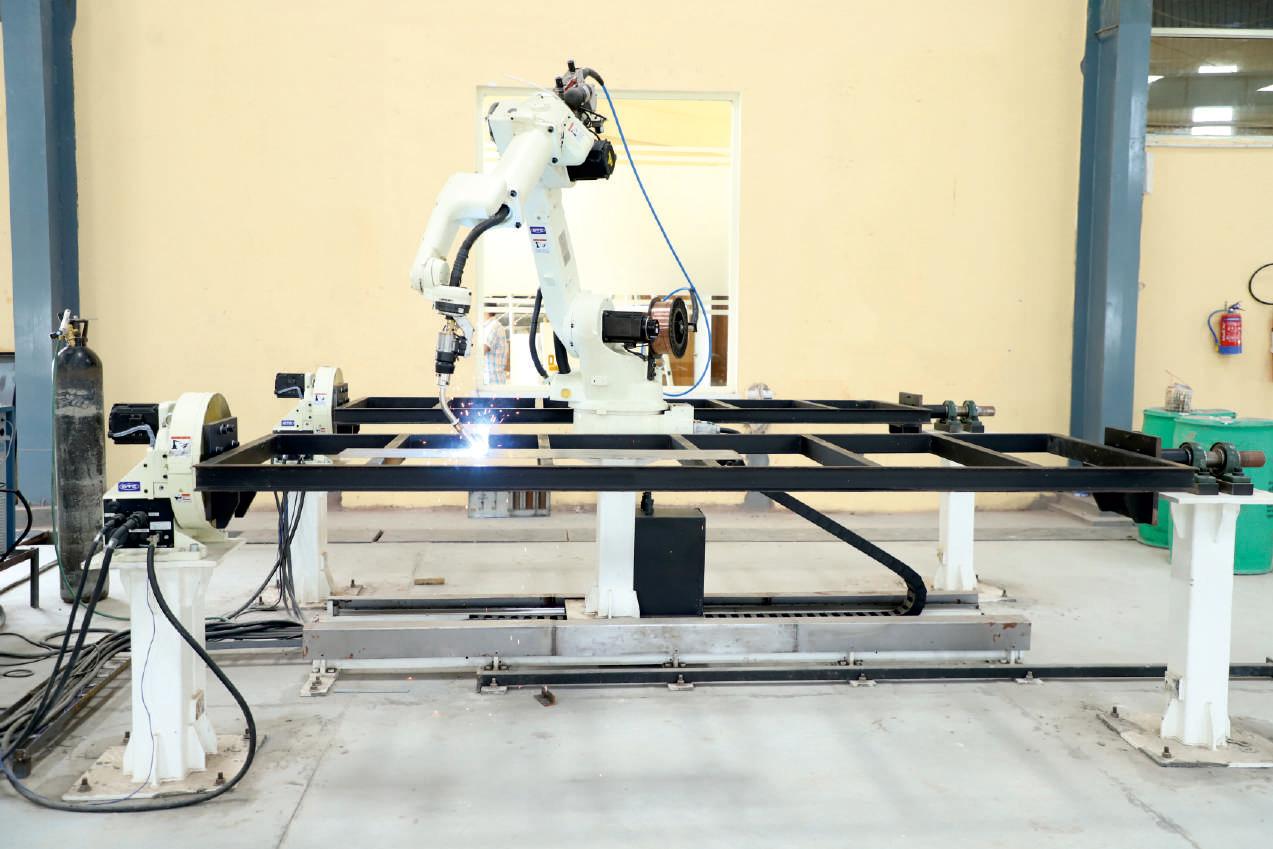

Robotic Welding Arrangement (Make OTC Daihen)

Technical Details Size
Two Swivelling Tables 1000 x 3000 mm
Axis 9-axis (6+3axis)
Welding Technology MIG

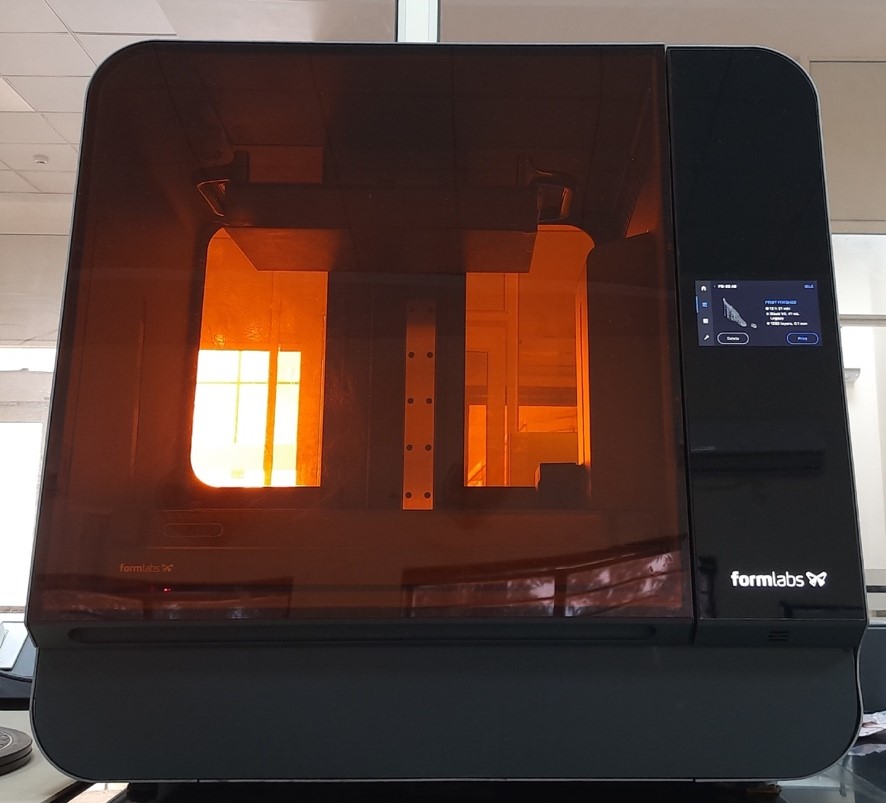

3D Printer (Make Formlabs)

Technical Details Size
Max. Bed size (Length x Width) 335x200 mm
Max. Height 300 mm
Printing Technology SLA (Stereolithography)
Material Photopolymer, Wax, Flexible

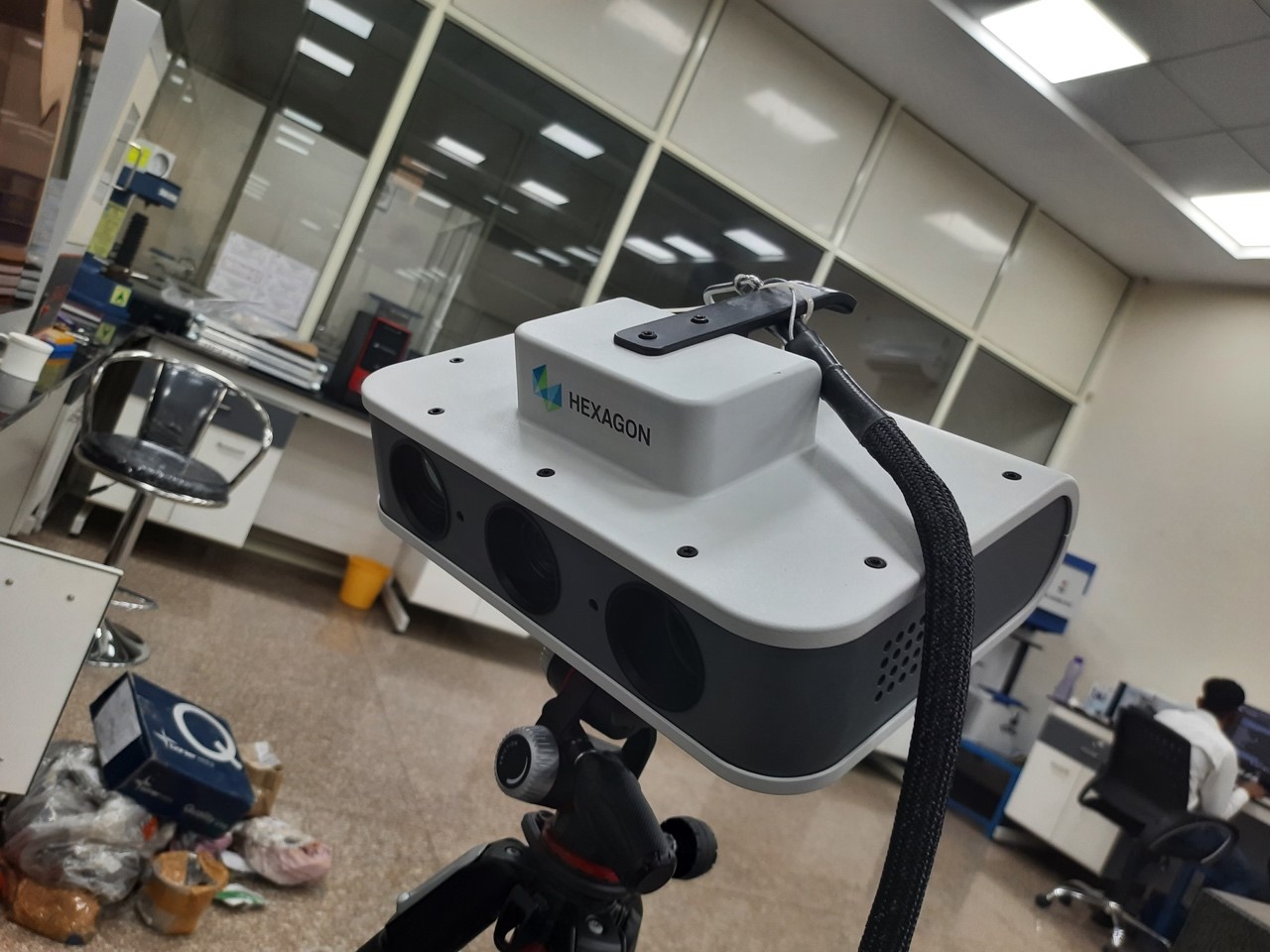

3D Scanner (Make Hexagon)

Technical Details Size
Max. Scanning Size 2000 x 2000 mm
FOV (Lense) 400
